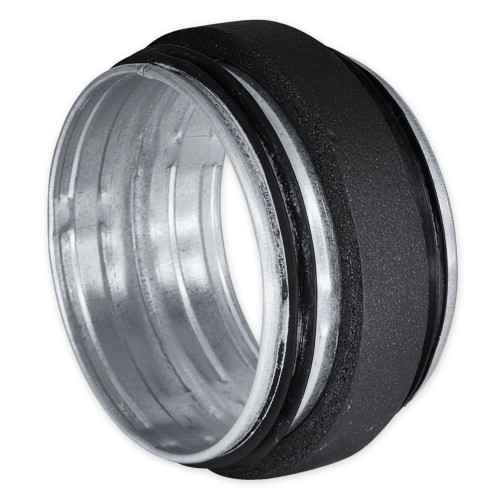

pre-insulated couplings for air ducts with gaskets IF-NPS
Construction:
- Made of galvanized steel
- With EPDM sealing gaskets
- Covered with flexible elastomer foam (FEF) insulation
- Insulation material meets class B fire safety standards
- System elements meet D-class airtightness standard
Installation:
- Easy installation
- Saves installation time and space
- Ensures material savings
Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black
Isolated connectors for metal air ducts from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
IF09-NPS100
|
pre-insulated connector metal, Ø100mm with gaskets, isolation 9mm
|
4750492030059
|
Ø 100 mm | B; D |
|
IF09-NPS125
|
pre-insulated connector metal, Ø125mm with gaskets, isolation 9mm
|
4750492030066
|
Ø 125 mm | B; D |
|
IF09-NPS160
|
pre-insulated connector metal, Ø160mm with gaskets, isolation 9mm
|
4750492030073
|
Ø 160 mm | B; D |
|
IF09-NPS200
|
pre-insulated connector metal, Ø200mm with gaskets, isolation 9mm
|
4750492030080
|
Ø 200 mm | B; D |
| Type | ØDnom [mm] |
L [mm] |
T [mm] |
m [kg] |
| IF09-NPS100 | 100 | 6 | 9 | 0,14 |
| IF09-NPS125 | 125 | 6 | 9 | 0,15 |
| IF09-NPS160 | 160 | 6 | 9 | 0,20 |
| IF09-NPS200 | 200 | 6 | 9 | 0,25 |
| Essential characteristics | Performance properties | Testing standards |
| Thermal conductivity coefficient (for all thicknesses) |
-10°C - 0,034 W/(m*K) 0°C - 0,036 W/(m*K) 25°C - 0,037 W/(m*K) 40°C - 0,041 W/(m*K) |
EN 12667 |
| Reaction to fire | B-s3, d0 | EN 13501-1 |
| Operating temperature | -40°C ... +85°C |
