Products PRE-INSULATED METAL ROUND SYSTEM pre-insulated bends with gaskets IF-BFS90°

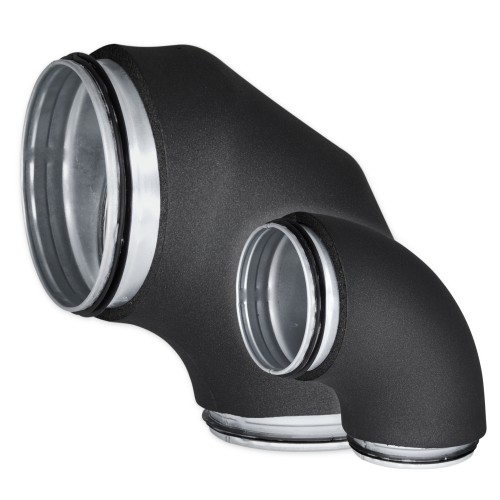

pre-insulated bends with gaskets IF-BFS90°

  • Gallery

Construction:

  • Made of galvanized steel
  • With EPDM sealing gaskets
  • Covered with flexible elastomer foam (FEF) insulation
  • Insulation material meets class B fire safety standards
  • System elements meet D-class airtightness standard



Installation:

  • Easy installation
  • Saves installation time and space
  • Ensures material savings



Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black





View products

Isolated metal air duct bends from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.

Connection

Class

Sort by

Article Description EAN Connection Class
IF09-BFS90-100
IF09-BFS90-100
pre-insulated elbow metal, 90°- Ø100mm with gaskets, extruded, isolation 9mm
4750492029930
 Ø 100 mm B; D
IF09-BFS90-125
IF09-BFS90-125
pre-insulated elbow metal, 90°- Ø125mm with gaskets, extruded, isolation 9mm
4750492029947
 Ø 125 mm B; D
IF09-BFS90-160
IF09-BFS90-160
pre-insulated elbow metal, 90°- Ø160mm with gaskets, isolation 9mm
4750492029954
 Ø 160 mm B; D
IF09-BFS90-200
IF09-BFS90-200
pre-insulated elbow metal, 90°- Ø200mm with gaskets, isolation 9mm
4750492029961
 Ø 200 mm B; D



Type ØDnom
[mm]		 rm
[mm]		 L
[mm]		 T
[mm]		 m
[kg]
IF09-BFS90-100* 100 100 100 9 0,35
IF09-BFS90-125* 125 125 125 9 0,52
IF09-BFS90-160 160 160 160 9 0,90
IF09-BFS90-200 200 200 200 9 1,32

*Extruded





Essential characteristics Performance properties Testing standards
Thermal conductivity coefficient
(for all thicknesses)		 -10°C - 0,034 W/(m*K)
0°C - 0,036 W/(m*K)
25°C - 0,037 W/(m*K)
40°C - 0,041 W/(m*K)		 EN 12667
Reaction to fire B-s3, d0 EN 13501-1
Operating temperature -40°C ... +85°C
