Products PRE-INSULATED METAL ROUND SYSTEM pre-insulated reducers concentric with gaskets IF-RCLS

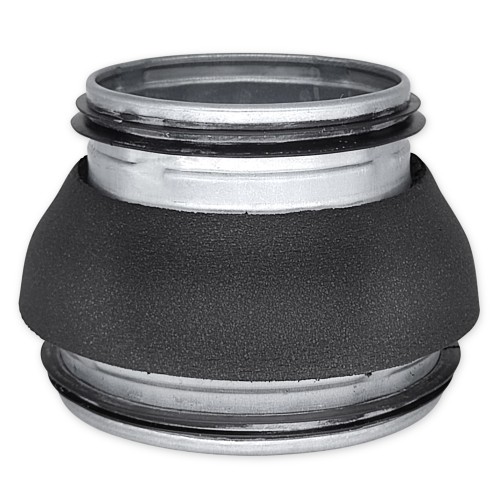

pre-insulated reducers concentric with gaskets IF-RCLS

  • Gallery

Construction:

  • Made of galvanized steel
  • With EPDM sealing gaskets
  • Covered with flexible elastomer foam (FEF) insulation
  • Insulation material meets class B fire safety standards
  • System elements meet D-class airtightness standard



Installation:

  • Easy installation
  • Saves installation time and space
  • Ensures material savings



Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black





View products

Isolated metal air duct reducers from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.

Connection

Class

Sort by

Article Description EAN Connection Class
IF09-RCLS125-100
IF09-RCLS125-100
pre-insulated reducer metal, Ø125-Ø100mm with gaskets, extruded, isolation 9mm
4750492030097
 Ø 125-100 mm B; D
IF09-RCLS160-100
IF09-RCLS160-100
pre-insulated reducer metal, Ø160-Ø100mm with gaskets, extruded, isolation 9mm
4750492030103
 Ø 160-100 mm B; D
IF09-RCLS160-125
IF09-RCLS160-125
pre-insulated reducer metal, Ø160-Ø125mm with gaskets, extruded, isolation 9mm
4750492030110
 Ø 160-125 mm B; D
IF09-RCLS200-100
IF09-RCLS200-100
pre-insulated reducer metal, Ø200-Ø100mm with gaskets, extruded, isolation 9mm
4750492030127
 Ø 200-100 mm B; D
IF09-RCLS200-125
IF09-RCLS200-125
pre-insulated reducer metal, Ø200-Ø125mm with gaskets, extruded, isolation 9mm
4750492030134
 Ø 200-125 mm B; D
IF09-RCLS200-160
IF09-RCLS200-160
pre-insulated reducer metal, Ø200-Ø160mm with gaskets, extruded, isolation 9mm
4750492030141
 Ø 200-160 mm B; D






Veids ØD1nom
[mm]		 ØD2nom
[mm]		 L
[mm]		 T
[mm]		 m
[kg]
IF09-RCLS125-100* 125 100 34 9 0,19
IF09-RCLS160-100* 160 100 56 9 0,28
IF09-RCLS160-125* 160 125 45 9 0,24
IF09-RCLS200-100* 200 100 65 9 0,40
IF09-RCLS200-125* 200 125 57 9 0,36
IF09-RCLS200-160* 200 160 37 9 0,30

*Extruded





Essential characteristics Performance properties Testing standards
Thermal conductivity coefficient
(for all thicknesses)		 -10°C - 0,034 W/(m*K)
0°C - 0,036 W/(m*K)
25°C - 0,037 W/(m*K)
40°C - 0,041 W/(m*K)		 EN 12667
Reaction to fire B-s3, d0 EN 13501-1
Operating temperature -40°C ... +85°C
