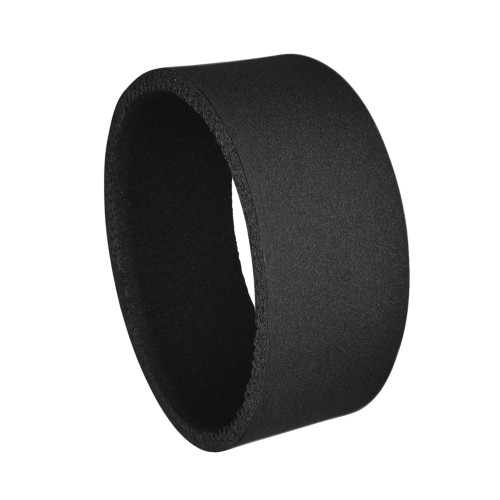

insulation joint gaskets IF-U

Construction:

  • Made of flexible elastomer foam (FEF) insulation
  • Insulation material meets class B fire safety standards



Installation:

  • Easy installation
  • Saves installation time and space
  • Ensures material savings



Operating temperature: -40°C ... +85°C
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black





Joint gaskets are designed to cover insulation joints. Joint gaskets not only provide sound and thermal insulation, but also serve as a protective barrier against of formation of thermal bridges and condensation. The properties of elastomeric foam allow gaskets to be easy application various joint configurations, ensuring a tight fit.

Width

Connection

Class

Sort by

Article Description EAN Width Connection Class
IF-U100
IF-U100
insulation joint gasket, Ø100mm, 2 pcs
4750492030844
50 mm Ø 100 mm B
IF-U125
IF-U125
insulation joint gasket, Ø125mm, 2 pcs
4750492030868
50 mm Ø 125 mm B
IF-U160
IF-U160
insulation joint gasket, Ø160mm, 2 pcs
4750492030875
50 mm Ø 160 mm B
IF-U200
IF-U200
insulation joint gasket, Ø200mm, 2 pcs
4750492030882
50 mm Ø 200 mm B






Type ØDnom
[mm]
H
[mm]
T
[mm]
m
[kg]
IF09-U100 100 50 6 0,007
IF09-U125 125 50 6 0,008
IF09-U160 160 50 6 0,010
IF09-U200 200 50 6 0,013







Essential characteristics Performance properties Testing standards
Thermal conductivity coefficient
(for all thicknesses)
-10°C - 0,034 W/(m*K)
0°C - 0,036 W/(m*K)
25°C - 0,037 W/(m*K)
40°C - 0,041 W/(m*K)
EN 12667
Reaction to fire B-s3, d0 EN 13501-1
Operating temperature -40°C ... +85°C
