Products PRE-INSULATED METAL ROUND SYSTEM pre-insulated T-joints with gaskets IF-TCPS

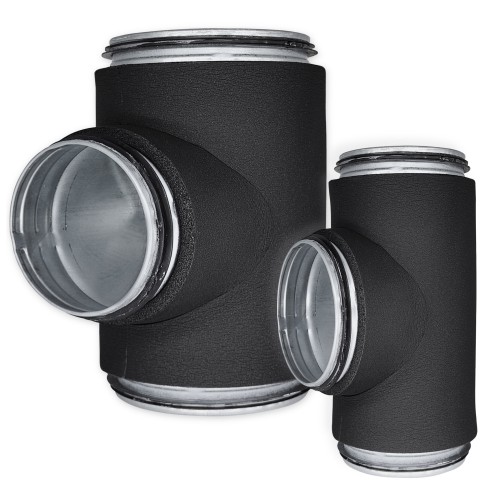

pre-insulated T-joints with gaskets IF-TCPS

  • Gallery
  • Gallery
  • Gallery

Construction:

  • Made of galvanized steel
  • With EPDM sealing gaskets
  • Covered with flexible elastomer foam (FEF) insulation
  • Insulation material meets class B fire safety standards
  • System elements meet D-class airtightness standard



Installation:

  • Easy installation
  • Saves installation time and space
  • Ensures material savings



Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black





View products

Isolated metal T-joints from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.

Connection

Class

Sort by

Article Description EAN Connection Class
IF09-TCPS100-100
IF09-TCPS100-100
pre-insulated T-joint metal, Ø100-Ø100mm with gaskets, extruded, isolation 9mm
4750492030240
 Ø 100-100 mm B; D
IF09-TCPS125-100
IF09-TCPS125-100
pre-insulated T-joint metal, Ø125-Ø100mm with gaskets, extruded, isolation 9mm
4750492030257
 Ø 125-100 mm B; D
IF09-TCPS125-125
IF09-TCPS125-125
pre-insulated T-joint metal, Ø125-Ø125mm with gaskets, extruded, isolation 9mm
4750492030233
 Ø 125-125 mm B; D
IF09-TCPS160-100
IF09-TCPS160-100
pre-insulated T-joint metal, Ø160-Ø100mm with gaskets, extruded, isolation 9mm
4750492030264
 Ø 160-100 mm B; D
IF09-TCPS160-125
IF09-TCPS160-125
pre-insulated T-joint metal, Ø160-Ø125mm with gaskets, extruded, isolation 9mm
4750492030271
 Ø 160-125 mm B; D
IF09-TCPS160-160
IF09-TCPS160-160
pre-insulated T-joint metal, Ø160-Ø160mm with gaskets, extruded, isolation 9mm
4750492030288
 Ø 160-160 mm B; D
IF09-TCPS200-125
IF09-TCPS200-125
pre-insulated T-joint metal, Ø200-Ø125mm with gaskets, extruded, isolation 9mm
4750492030295
 Ø 200-125 mm B; D
IF09-TCPS200-160
IF09-TCPS200-160
pre-insulated T-joint metal, Ø200-Ø160mm with gaskets, extruded, isolation 9mm
4750492030301
 Ø 200-160 mm B; D
IF09-TCPS200-200
IF09-TCPS200-200
pre-insulated T-joint metal, Ø200-Ø200mm with gaskets, isolation 9mm
4750492030318
 Ø 200-200 mm B; D






Type ØD1nom
[mm]		 ØD3nom
[mm]		 L
[mm]		 L3
[mm]		 T
[mm]		 m
[kg]
IF09-TCPS100-100* 100 100 195 71 9 0,55
IF09-TCPS125-100* 125 100 195 79 9 0,63
IF09-TCPS125-125* 125 125 220 82 9 0,72
IF09-TCPS160-100* 160 100 195 97 9 0,76
IF09-TCPS160-125* 160 125 220 99 9 0,86
IF09-TCPS160-160* 160 160 255 99 9 1,08
IF09-TCPS200-125* 200 125 230 118 9 1,04
IF09-TCPS200-160* 200 160 265 129 9 1,31
IF09-TCPS200-200 200 200 270 110 9 1,13

*Extruded





Essential characteristics Performance properties Testing standards
Thermal conductivity coefficient
(for all thicknesses)		 -10°C - 0,034 W/(m*K)
0°C - 0,036 W/(m*K)
25°C - 0,037 W/(m*K)
40°C - 0,041 W/(m*K)		 EN 12667
Reaction to fire B-s3, d0 EN 13501-1
Operating temperature -40°C ... +85°C
